On the Home dashboard, you can perform the initial MyQ setup. After the setup, you can use the dashboard to directly access MyQ key features, display statistics, and generate support data.

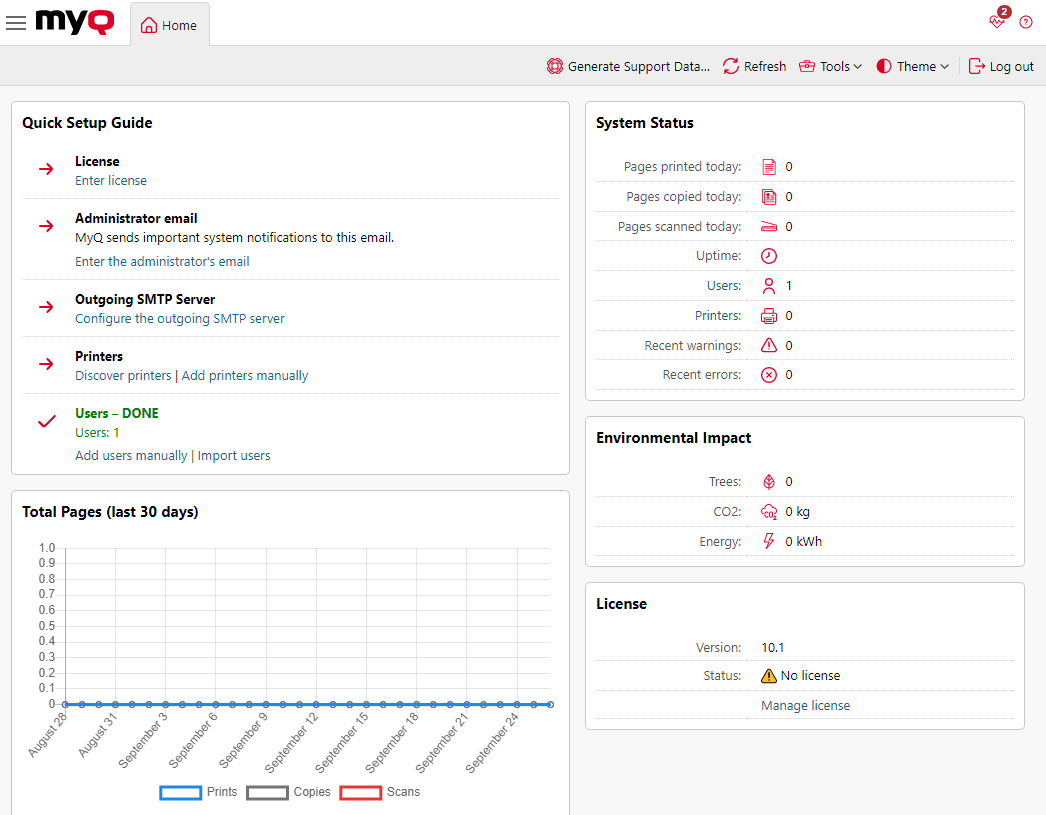

MyQ web UI - Home dashboard

The dashboard is fully adjustable; it consists of multiple building blocks (widgets) that can be added and removed from the screen. You can use the blocks to customize both the layout and functionality of the dashboard.

By default, there are six widgets on the dashboard: Quick Setup Guide, System Status, Total Pages (last 30 days), Environmental Impact, License, and Printers with Issue. Apart from these, you can also add the following widgets:

  • Quick Links: From the Quick Links widget, you can directly access the most important tabs of the MyQ Web Interface: Jobs, Printers, Users, Reports, Settings, and Log.

  • Top Active: Printers: Shows the most active printing devices.

  • Top Active: Groups: Shows the most active printing groups.

  • Top Active: Users: Shows the most active users.

The Quick Setup Guide walks you through the initial MyQ setup.

In System Status, you can see the following system status information:



Pages printed today

Number of printed pages over the last 24 hours. Cached every 60 seconds.

Pages copied today

Number of copied pages over the last 24 hours. Cached every 60 seconds.

Pages scanned today

Number of scanned pages over the last 24 hours. Cached every 60 seconds.


MyQ system uptime, in hours.


Number of active users. Clicking opens the Users page overview.


Number of printers where the status is not: Local, replicated or deleted. Cached every 15 seconds. Clicking opens the Printers page.

Recent warnings

Number of warning log messages over the last 24 hours. Cached every 30 seconds.

Recent errors

Number of error and critical log messages over the last 24 hours. Cached every 30 seconds.

In the Total Pages (last 30 days) widget, you can see a graph of the prints, copies, and scans in the last 30 days.

The Environmental Impact widget shows your environmental impact in Trees, CO2, and Energy.

1 tree = 8333 pages / 1 page = 12.7g of CO2 / 1 page = 48Wh of energy / 1 recycled page = 32Wh of energy

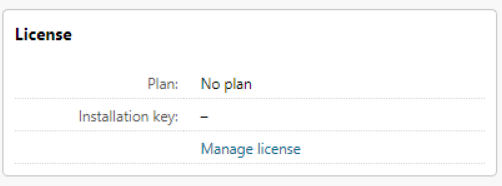

The License widget shows license information and can redirect you to the License settings tab.

Printers with Issue shows unreachable active printers and active printers with unresolved alerts. You can also see these issues in the Issues column, in the Printers overview (MyQ, Printers).

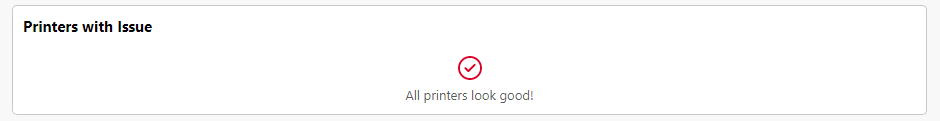

Printers with issue widget

Adding new widgets and moving widgets on the dashboard

To add a new widget:

  1. Click Tools at the top-right corner of the dashboard, and then click Add Widget. The Add Widget pop-up window appears.

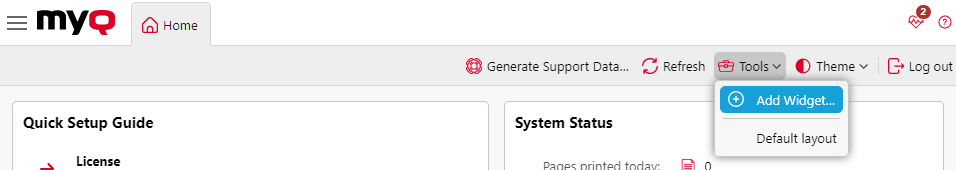

    Add a new widget
  2. In the pop-up, select the widget, and then click OK. The new widget is displayed on the board.

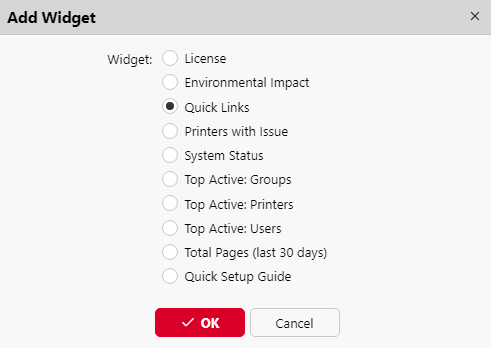

    Adding a new widget window

To move widgets, drag and drop them on the board.

To delete widgets, click on the three dots at the top-right corner of the widget, and click Remove.

Select Default layout in the Tools menu, to restore the dashboard to its default layout.

Changing the theme

To change the MyQ Web UI theme, click on Theme at the top-right corner of the dashboard. The available options are:

  • Synchronize with the operating system

  • Blue

  • Red (default)

  • Dark

  • High Contrast

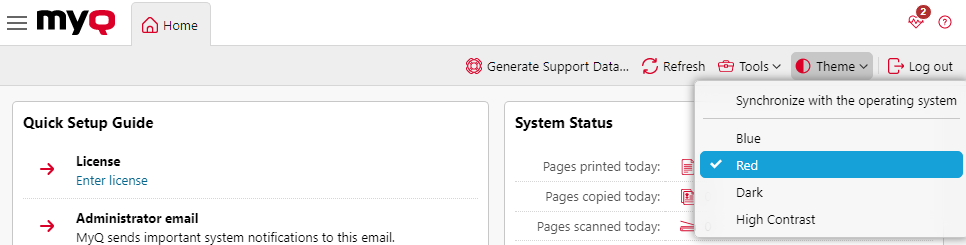

MyQ web UI theme options
