Configure ScannerVision

In order to set ScannerVision properly, you need to configure Network settings, Templates, Clients and Users.

Network Settings

  1. Open ScannerVision. Settings is shown by default.

  2. Click Network Server Settings in the Module View.

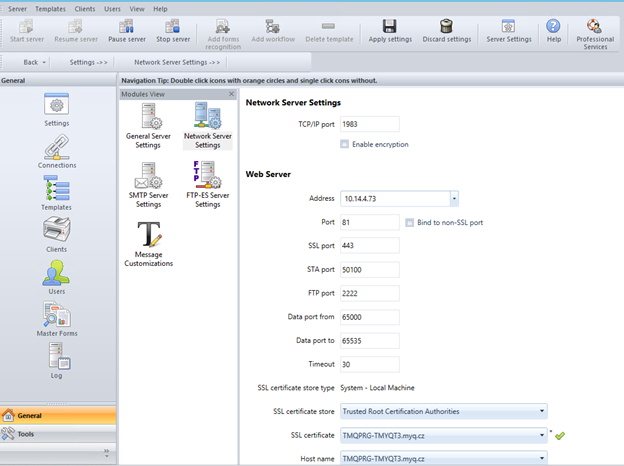

    ScannerVision Network Server Settings with the TCP port and the web server settings

  3. Add the IP address or hostname of the ScannerVision Web Server in the Address field.

  4. Change the preset ports if necessary.

  5. Enable/disable non SSL.

  6. Configure the FTP-ES server settings:

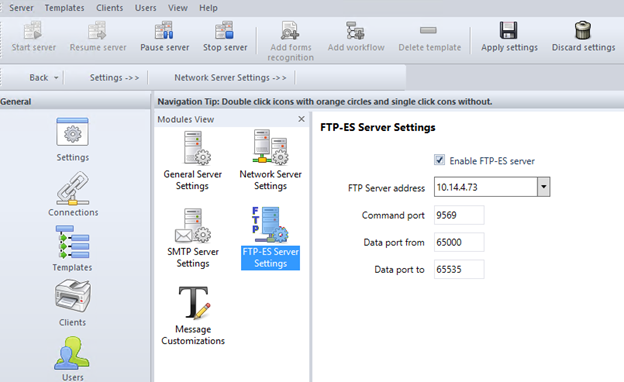

    ScannerVision FTP-ES Server Settings with FTP-ES enabled, the FTP server address, and the command and data ports

  7. Save your settings.
