This topic discusses basic features of the terminal and shows you how to manage them on the Terminal Actions settings tab on the MyQ Web administrator interface. The features are called actions and can be accessed from action nodes on the terminal.

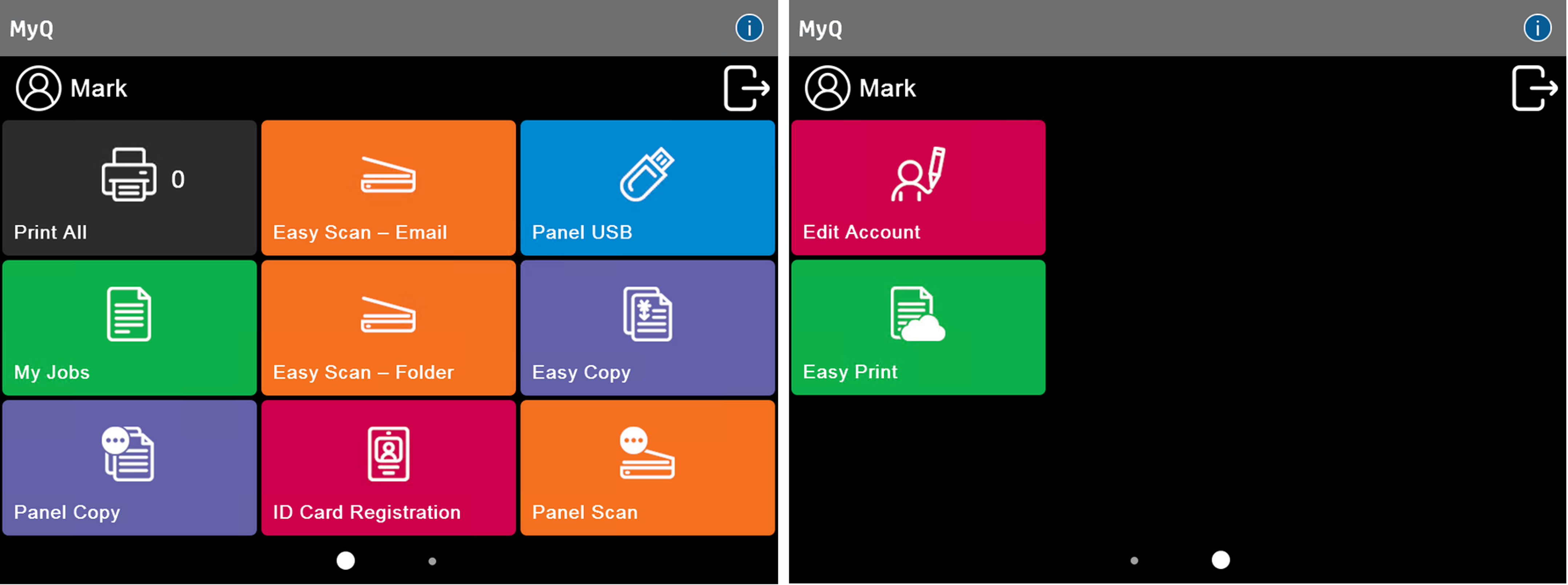

Terminal Actions on a normal screen

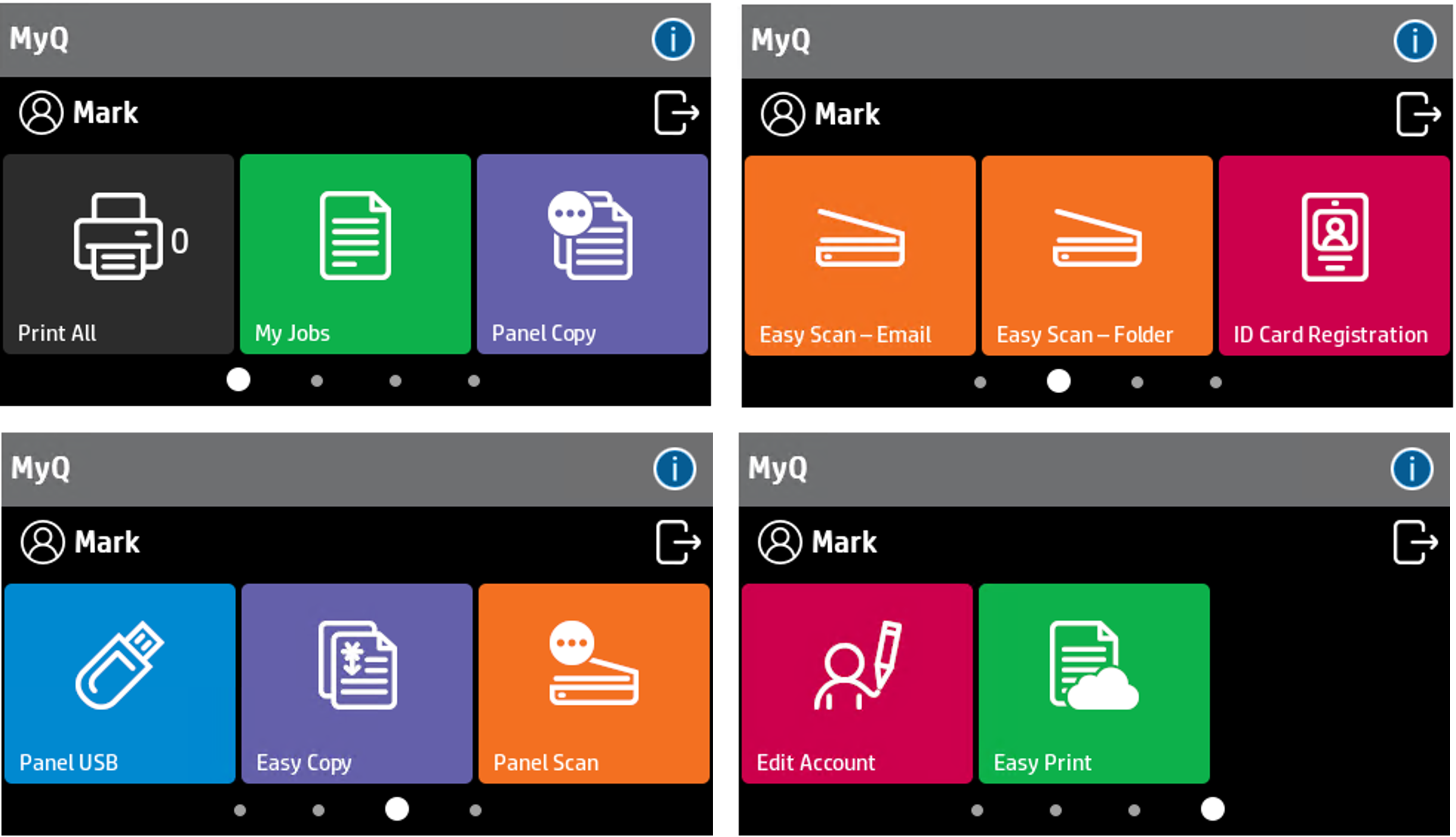

Terminal Actions on 4.3” screen
You can swipe left or right to switch between screens, or tap on the dots at the bottom of the screen.
The action nodes correspond to buttons on the printing device display. On the MyQ Web administrator interface, you can configure the layout of the display screen, as well as the behavior of each button. Therefore, you are free to choose any combination of available actions and their positions on the screen. The layout is displayed on a WYSIWYG (What You See Is What You Get) terminal preview and can be configured there.
Additional layout options are provided by the possibility to create folders and put action nodes inside. Folders can be used to group actions of the same type, such as scanning to different destinations, or to enable users to access a higher number of actions.
Users and groups can be given rights to different actions. This way, you can configure individual home screens for each user or group of users.
