PS Data security

Restrict data folder permissions

The data folder of MyQ Print Server contains highly sensitive data, including the user database and TLS certificate private key. Its current location is displayed in the MyQ Easy Config application:

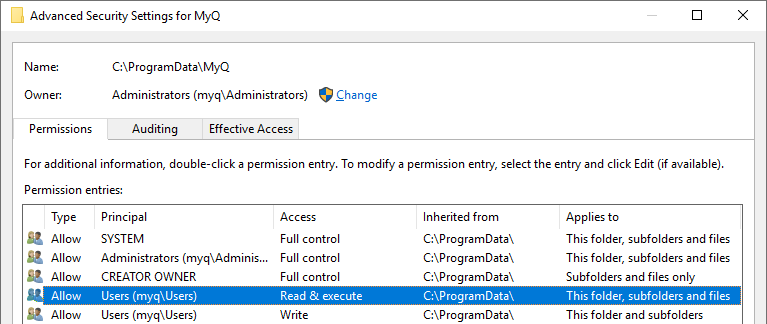

All users (local/domain) have read access by default:

Only Administrators, SYSTEM, and MyQ service account should have access to this directory. Here is a sample batch script that can be used for permission hardening:

@ECHO OFF
REM Add the virtual account SIDs to all MyQ Print Server services:
sc sidtype Apache unrestricted
sc sidtype FirebirdServerDefaultInstance unrestricted
sc sidtype KNM_PM unrestricted
sc sidtype MyQ unrestricted
sc sidtype traefik unrestricted

REM Grant rights to the virtual service accounts:
icacls "%ProgramData%\MyQ" /grant:r "NT AUTHORITY\SYSTEM:(OI)(CI)F" /grant
"BUILTIN\Administrators:(OI)(CI)F" /grant "NT SERVICE\MyQ:(OI)(CI)M" /grant "NT
SERVICE\Apache:(OI)(CI)M" /grant "NT SERVICE\FirebirdServerDefaultInstance:(OI)(CI)M"
/grant "NT SERVICE\Apache:(OI)(CI)M" /grant "NT SERVICE\traefik:(OI)(CI)M" /inheritance:r
/Q

Enable database encryption

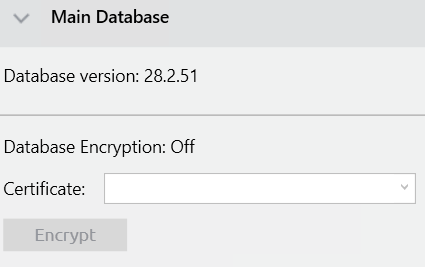

Always encrypt the database using a custom certificate to lower the risk of data leaks:

Encrypting the database in MyQ Easy Config

The certificate needs to have the “Encrypting File System” Enhanced Key Usage (EKU) and it must be located in one of the following computer certificate stores:

Personal
Trusted Publishers
Third-Party Root Certification Authorities
Other people

The Personal store is the preferred one.

Encrypt backups

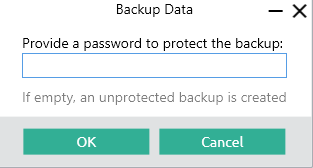

Database backups should be protected by secure, randomly generated passwords:

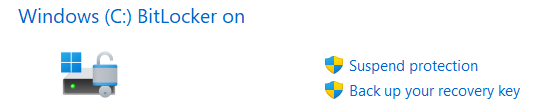

Enable disk encryption

If possible, a full disk encryption technology like Microsoft BitLocker should be enabled on the MyQ Print Server to protect the data at rest:
