Configuration on the Device Web UI

Once the embedded terminal is installed, you must disable a few settings on the device Web UI. These settings are Print banner sheet and Allow the print driver to override. Disabling these settings prevents the terminal from printing an extra page after every job.

Adding the server's SMTP address must also be done manually.

For Xerox EIP 3.7

Disable settings

1. Log in as an admin to the device Web UI.

2. Click System in the left pane.

3. Click the Defaults and Policies icon in the right pane. A pop-up with the same name opens.

4. In the Printer section, click Print Banner Pages. A pop-up with the same name opens.



5. Click Print Banner Pages and select Off.

6. Set Allow Print Driver to Override as deactivated.

7. Click OK, and then Close in the previous window.

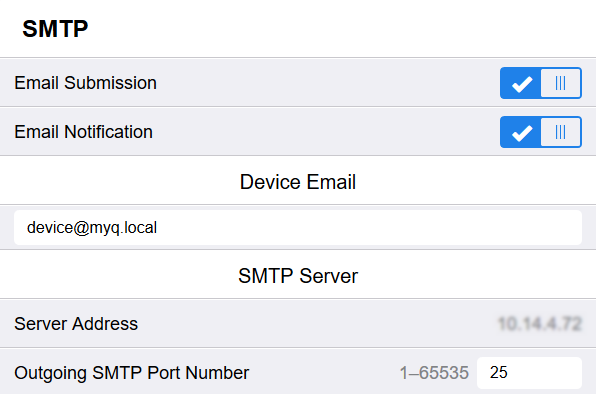

Add SMTP settings

1. Log in as an admin to the device Web UI.

2. Click Connectivity in the left pane. The connectivity options become visible in the right pane.

3. Find and click SMTP. A pop-up with this name opens.



4. Set a Device Email, a Server Address, and an Outgoing SMTP Port Number. The last one is standard 25.

5. If needed, set Connection Security and/or the Outgoing SMTP authentication for more security.

6. Click OK.

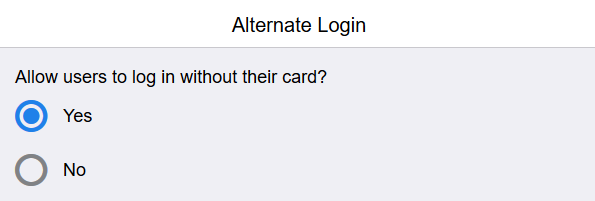

Login without a card setting

1. Log in as an admin to the device Web UI.

2. Click Permissions in the left pane.

3. Click the Login/Logout Settings icon. The settings become visible.

4. In the Login Method section find Convenience.

5. Click the Select or Edit button. A Convenience Login window opens.



6. Set Allow Users to login without a card to Yes.

7. Click OK.
