API Endpoints

Complete REST API Documentation

YAML files containing the full list of available endpoints can be copied directly from the installation folder:

C:\Program Files\MyQ\PhpApps\PrintServer\src\Api

Or downloaded from these addresses:

Open these URLs in the browser locally on the MyQ X server or replace localhost and port with your values to download them from a remote server.

For better clarity, YAML can be interpreted with e.g. https://editor.swagger.io/.

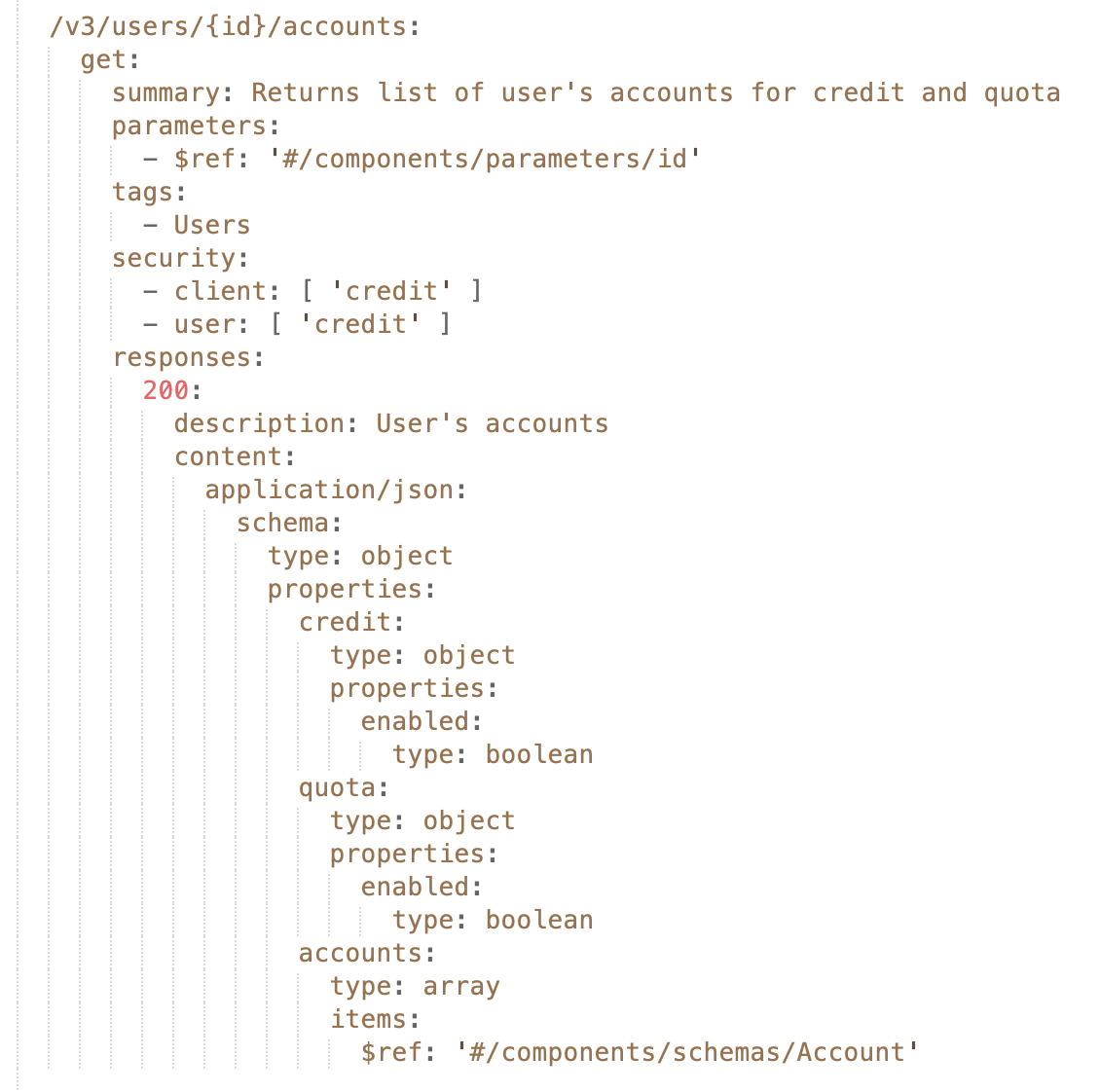

How to Read YAML




  • tags = required scope

  • security = token type required to use this endpoint

  • responses = success response, potential error responses, and their description

  • $ref = reference to a schema for more details; schemas are at the end of the YAML file

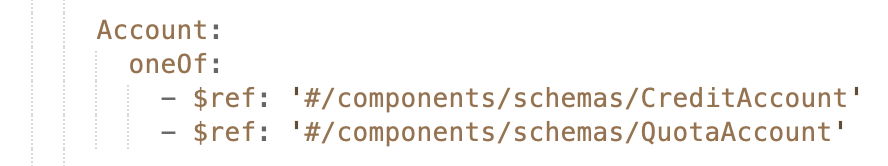

  • refers to the additional schemas

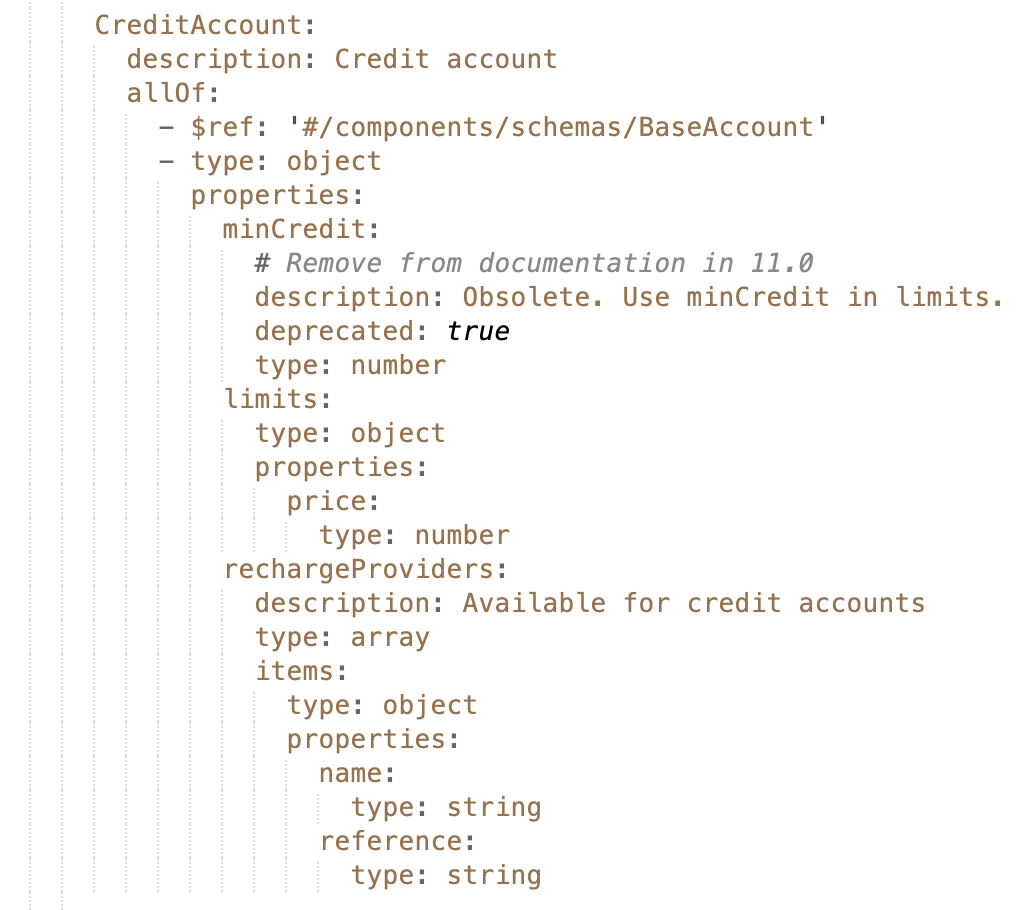

  • description of the schema, its objects, etc.
