Easy Scan Parameters

On the Parameters tab, you can set the scanned file's parameters, such as resolution and format. You can select from a number of options for each parameter.

There are predefined parameters, but you can also create your own parameters.

All parameters are dependent on the particular printing device type. Therefore, some options might not be available.

Some parameters (e.g. resolution, color) significantly influence the scanned file's size. For example, a combination of higher resolution and full color will dramatically increase the file size.

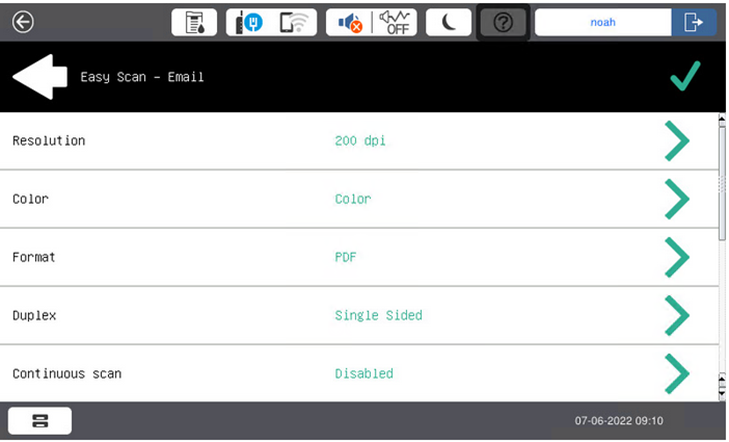

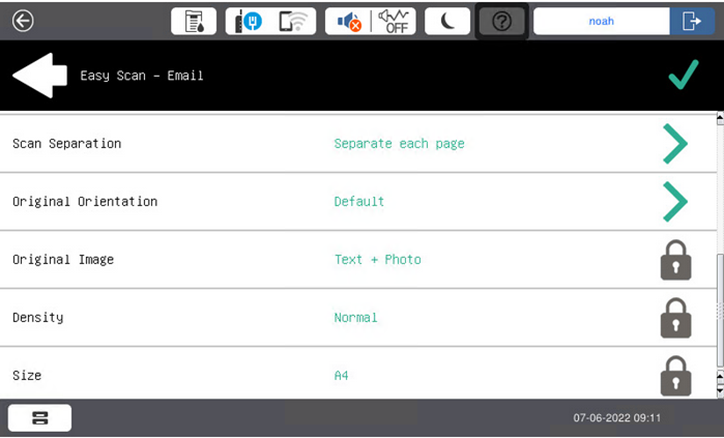

You can allow users to change their scan settings from the terminal screen.

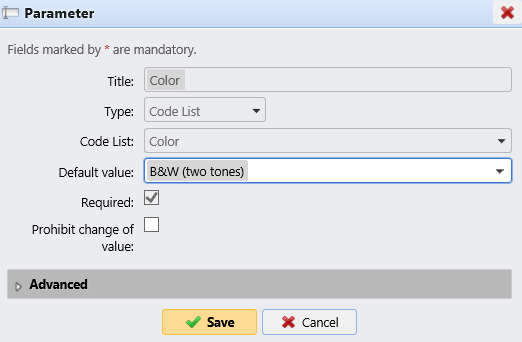

To do this, you have to modify the settings of the particular parameter on the Parameters tab on the Easy Scan action node properties panel. Open the parameter properties panel, uncheck the Prohibit change of value option (checked by default) and Save.

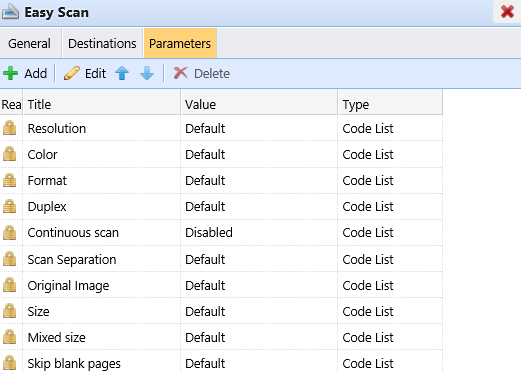

Predefined Parameters

• Resolution - The outgoing file's resolution. You can select from the following options:

  • 200 dpi

  • 300 dpi

  • 600 dpi

  • Default

• Color - The outgoing file's color scale. You can select from the following options:

  • Color

  • B&W (two tones)

  • Default

• Format - The outgoing file's format. You can select from the following options:

  • PDF

  • JPEG

  • TIFF

  • HCPDF

  • Default

• Duplex - Simplex and Duplex scanning options. You can select from the following:

  • Single Sided

  • Duplex - binding on top

  • Duplex - binding on side

  • Default

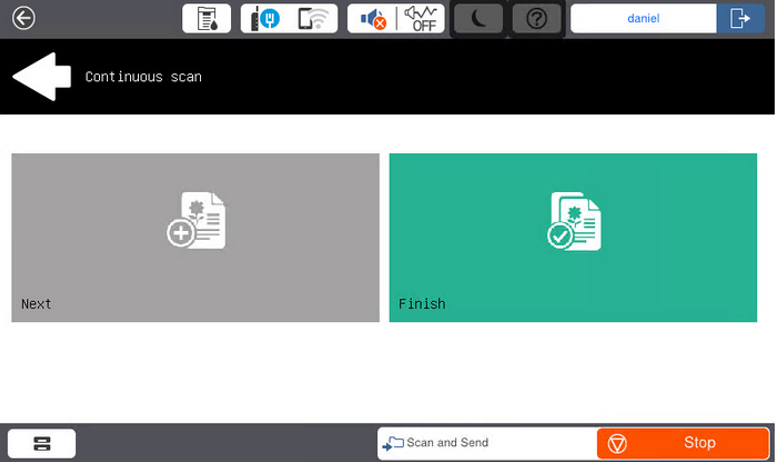

• Continuous scan - With the continuous scan option Enabled, scan jobs are not sent until Finish is tapped. After clicking Next, the printing device scans another page. This parameter only works when scanning from the glass panel. It doesn’t work when using the Automatic Document Feeder.



  You can select from the following:

  • Disabled

  • Enabled

  • Default

• Scan separation - If a document with multiple pages is scanned, scanned pages can be stored either separately (each page in a separate file) or all together in one file. You can select from the following options:

  • All pages together

  • Separate each page

  • Default

• Original Image - Determines the way in which the printing device is going to process the scanned page. You can select from the following options:

  • Text + Photo

  • Photo

  • Text

  • Default

• Original Orientation - Determines the scanned page's orientation in the outgoing file. The paper's position is relative to the person standing at the printing device. You can select from the following options:

  • Top Edge on Top: The page is displayed in a horizontal position (top edge of the page opposite to the person).

  • Top Edge on Left: The page is displayed in a vertical position (top edge of the page on the left-hand side of the person).

  • Default

• Size - The scanned output's size. This determines the size of the scanning area; therefore it should correspond to the actual size of the scanned paper. You can select from the following options:

  • Automatic

  • A3

  • A4

  • A5

  • B4

  • B5

  • Ledger

  • Letter

  • Legal

  • Statement

  • Default

• Density - The picture's density in the outgoing file. The higher it is, the darker the resulting picture is. You can select from the following options:

  • Lowest

  • Lower

  • Low

  • Normal

  • High

  • Higher

  • Highest

  • Default

Limitations:

• Continuous scan - If a scan is canceled by tapping the back arrow, canceled by pressing the cancel button or if a user logs out, the MFP sends scanned documents up to that point. The MFP does not discard the scanned documents. A notification about the scanned job contains no information regarding the number of scanned pages. Continuous scan is possible only from the glass. It is not supported if the scan is from the ADF.

• Scan cancellation - If a single-page file format, such as jpeg, tiff, single PDF, etc., is selected, then scanned pages will be sent and will be recorded in the job_log. If multi-page file format is selected, all including scanned pages are canceled (Information obtained from Epson support).

• ADF scan - If a scan is canceled by tapping the cancel button or if a user logs out, the MFP sends scanned documents up to that point. The MFP does not discard the scanned documents. A notification about the scanned job contains no information regarding the number of scanned pages.

• The default A4 paper orientation (= not rotated paper = iso_a4_210x297mm) is landscape (= insert short edge to ADF) on all models regardless of the printed infographics on the ADF.
