Dependency Reports
To make sure that the dependencies are set correctly, you can check if the dependency report of the MyQ server role corresponds to the below graphs:
![Dependency graph on the cluster](../../../__attachments/1263174624/DependenciesGraph.png?inst-v=f576f6b0-eb9f-4035-8724-3dad44b7106e)

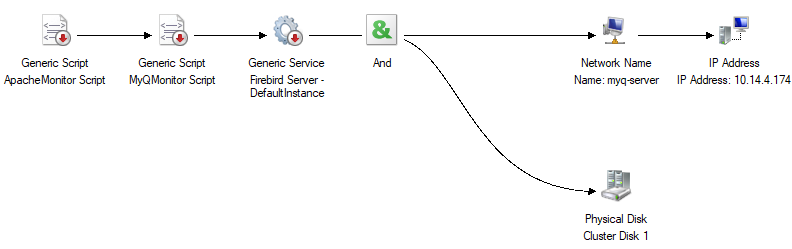

Dependency graph of the cluster on the MyQ server
![Dependency graph of the cluster with embedded terminals](../../../__attachments/1263174624/DependenciesGraphEmb.png?inst-v=f576f6b0-eb9f-4035-8724-3dad44b7106e)

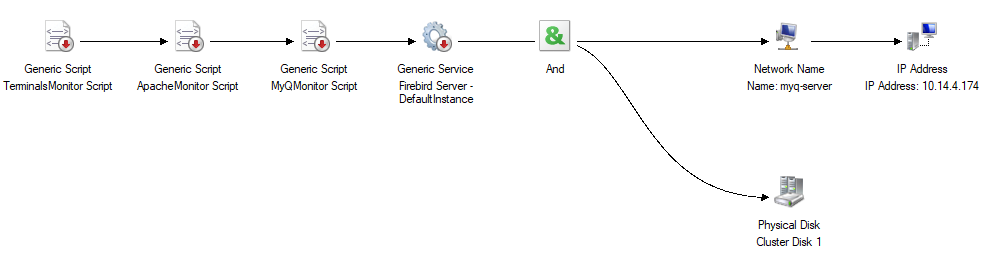

Dependency graph of the cluster with embedded terminal on the MyQ server
To open the dependency report, right-click the MyQ server role on the Roles tab of the cluster in Failover Cluster Manager, click More Actions, and click Show Dependency Report.
