Credit Recharge

Add credit to the user’s internal MyQ X credit account.

Contents

Requests

Get recharge providers

GET /v3/rechargeProviders

Get the current active Recharge providers.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Request Body

empty

Response Body

CODE
{
  "providers": [
    {
      "name": "string",
      "reference": "string",
      "description": "string",
      "params": [
        "string",
        0,
        true
      ]
    }
  ],
  "count": 0
}
  • name – Payment recharge provider name.

  • reference – Provider reference, use in requests to recharge credit using this provider; for integrations, use external.

  • description – Payment recharge provider description; optional.

  • params – Additional parameters; optional.

Examples:

Request Body

Response Body

empty

CODE
{
    "providers": [
        {
            "name": "External Payment Providers",
            "reference": "external",
            "description": "",
            "params": []
        },
        {
            "name": "PayPal",
            "reference": "paypal",
            "description": "",
            "params": []
        }
    ],
    "count": 2
}

REST API recharge does not support any standard built-in payment provider except for Voucher and External Payment Providers; use the recharge provider reference external in your requests. All payments will be visible in the logs with the source External Payment Provider.

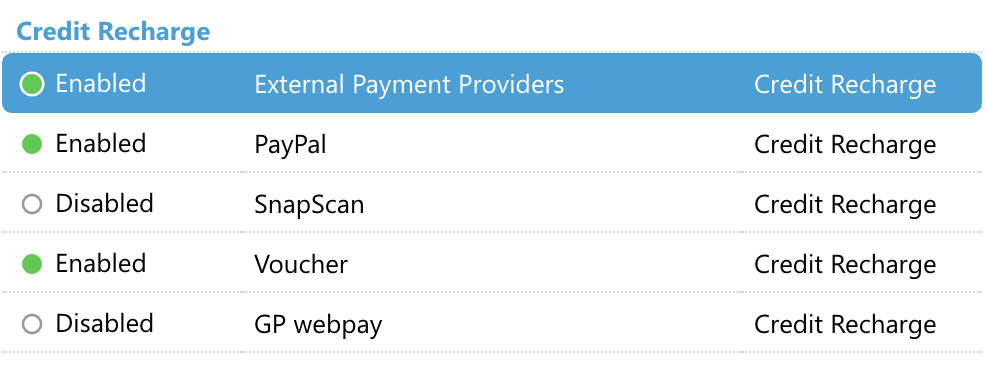

Before you make recharges, ensure that External Payment Providers is enabled in MyQ X, in Settings > Credit.


If it is not at the time of calling the endpoint to create a payment, you will receive a message: Invalid operation: The operation cannot be performed in the current state. Payment provider is disabled.

Create a payment

POST /v3/rechargeProviders/{reference}/payments

Create a payment. You must commit the payment to make it effective.

Logged user MUST have the right Manage payments.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Parameters

{reference} – Recharge provider reference.

Request Body

CODE
{
  "userId": 0,
  "description": "string",
  "params": {
		"amount": 0
}
  • userID – ID of the user whose credit is recharged, get from the users endpoint.

  • description – Description of the payment; optional.

  • params – Additional parameters; required.

    • amount – Amount to be recharged.

Response Body

CODE
{
  "id": "string",
  "userId": 0,
  "amount": 0,
  "description": "string",
  "params": {
    "additionalProp1": "string",
    "additionalProp2": "string",
    "additionalProp3": "string"
  }
}
  • id – ID of the payment, must be referenced when committing or rolling back the payment.

  • userID – ID of the user whose credit is recharged.

  • amount – Requested amount to be recharged.

  • description – Description of the payment; optional.

  • params – Additional parameters provided when the payment was created; optional.

Examples:

Request Body

Response Body

CODE
{
	"userId": 34173,
	"params": {
		"amount": 10
	}
}
CODE
{
    "id": "34200",
    "userId": 34173,
    "amount": 10,
    "description": "",
    "params": {
        "amount": 10,
        "createdBy": -2
    }
}

Update a payment

PATCH /v3/rechargeProviders/{reference}/payments/{id}

Update the payment.

Logged user MUST have the right Manage payments.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Request Body

CODE
{
  "description": "string",
  "params": {
		"amount": 20
  }
}
  • description – Description of the payment; optional.

  • params – Additional parameters; required.

    • amount – Amount to be recharged.

Response Body

empty

Examples:

Request Body

Response Body

CODE
{
  "description": "Payment from Acme app",
  "params": {
		"amount": 20
  }
}

empty

1 if successful

Commit a payment

POST /v3/rechargeProviders/{reference}/payments/{id}/commit

Commit the payment to make it effective.

Logged user MUST have the right Manage payments.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Parameters

{reference} – Recharge provider reference.

{id} – Payment ID received when the payment was created.

Request Body

empty

Response Body

CODE
{
  "amount": 0
}
  • amount - The credit amount that was added to the account.

Examples:

Request Body

Response Body

empty

CODE
{
  "amount": 10
}

Rollback a payment

POST /v3/rechargeProviders/{reference}/payments/{id}/rollback

Roll back the payment.

Logged user MUST have the right Manage payments.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Parameters

{reference} – Recharge provider reference.

{id} – Payment ID received when the payment was created.

Request Body

empty

Response Body

CODE
{
  "reason": "string"
}
  • reason - Reason why the payment was rolled back

Examples:

Request

Response

CODE
{
  "reason": "Cancelled by user"
}

empty

1 if successful.

Get payments

GET /v3/rechargeProviders/{reference}/payments?userId={userid}

Get payments.

Logged user MUST have the right Manage payments.

Authentication

Grant_type: client_credentials, login_info
Scopes: [ credit ]

Headers

Content-Type: application/json
Authentication: Bearer %access_token%

Request Body

empty

Response Body

CODE
{
  "reason": "string"
}
  • reason - Reason why the payment was rolled back.

Parameters

{userid} – ID of a user whose payment history is requested; optional. Omit to get all payment history. When omitted, the request can be completed only in the user context (user token).

Request Body

empty

Response Body

CODE
{
  "payments": [
    {
      "id": 0,
      "userId": 0,
      "amount": 0,
      "currency": "string",
      "state": "string",
      "created": "2021-10-21T09:24:43.122Z",
      "updated": "2021-10-21T09:24:43.122Z",
      "expires": "2021-10-21T09:24:43.122Z",
      "paymentNo": 0,
      "provider": "string",
      "description": "string"
    }
  ],
  "count": 0
}
  • id - ID of the payment.

  • userID - User whose credit was recharged.

  • amount - Credit amount recharged.

  • currency - Payment currency; optional.

  • state - Payment status.

    • state: created – payment created, not yet effective.

    • state: completed – payment was committed and made effective.

    • state: canceled – rolled back payment.

  • created - Creation timestamp.

  • updated - Update timestamp.

  • expires – Expiration timestamp.

  • paymentNo – Payment number.

  • provider – Reference of the payment provider that initiated the payment.

  • description - Payment description.

Examples:

Request

Response

empty

CODE
{
    "payments": [
        {
            "id": "34204",
            "userId": 34173,
            "amount": 15,
            "currency": null,
            "state": "created",
            "created": "2025-04-29T00:51:19+02:00",
            "updated": "2025-04-29T00:51:19+02:00",
            "expires": null,
            "paymentNo": "5",
            "provider": "external",
            "description": ""
        },
        {
            "id": "34203",
            "userId": 34173,
            "amount": 15,
            "currency": null,
            "state": "canceled",
            "created": "2025-04-29T00:46:48+02:00",
            "updated": "2025-04-29T00:50:58+02:00",
            "expires": null,
            "paymentNo": "4",
            "provider": "external",
            "description": "Cancelled by user"
        },
        {
            "id": "34200",
            "userId": 34173,
            "amount": 10,
            "currency": null,
            "state": "completed",
            "created": "2025-04-29T00:33:31+02:00",
            "updated": "2025-04-29T00:42:03+02:00",
            "expires": null,
            "paymentNo": "3",
            "provider": "external",
            "description": ""
        }
    ],
    "count": 3
}

Practical Example

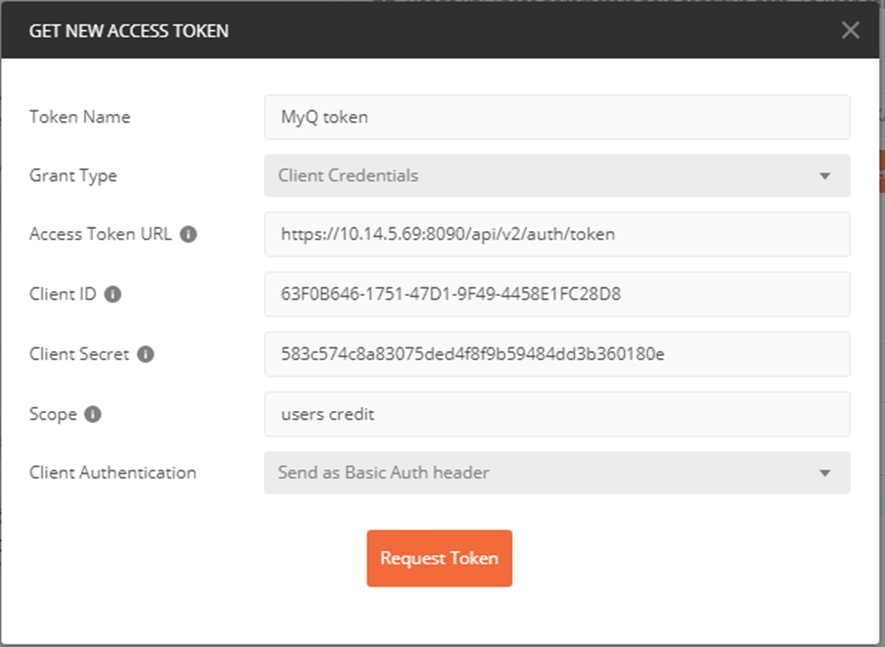

To recharge credit, we usually need at least the scopes users credit.

Obtain the user ID:

GET {{baseUrl}}/v3/users/find?username={{username}}

  • Required scope: users

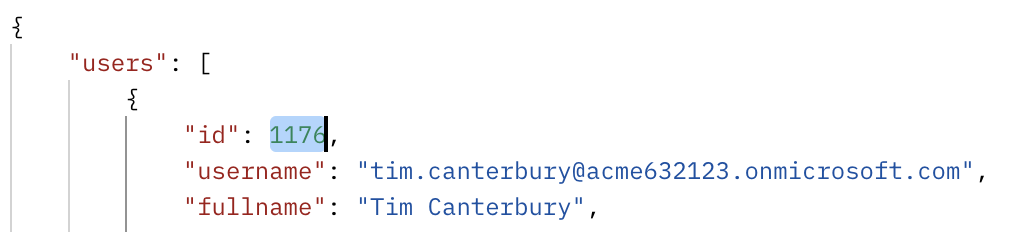

Example response:

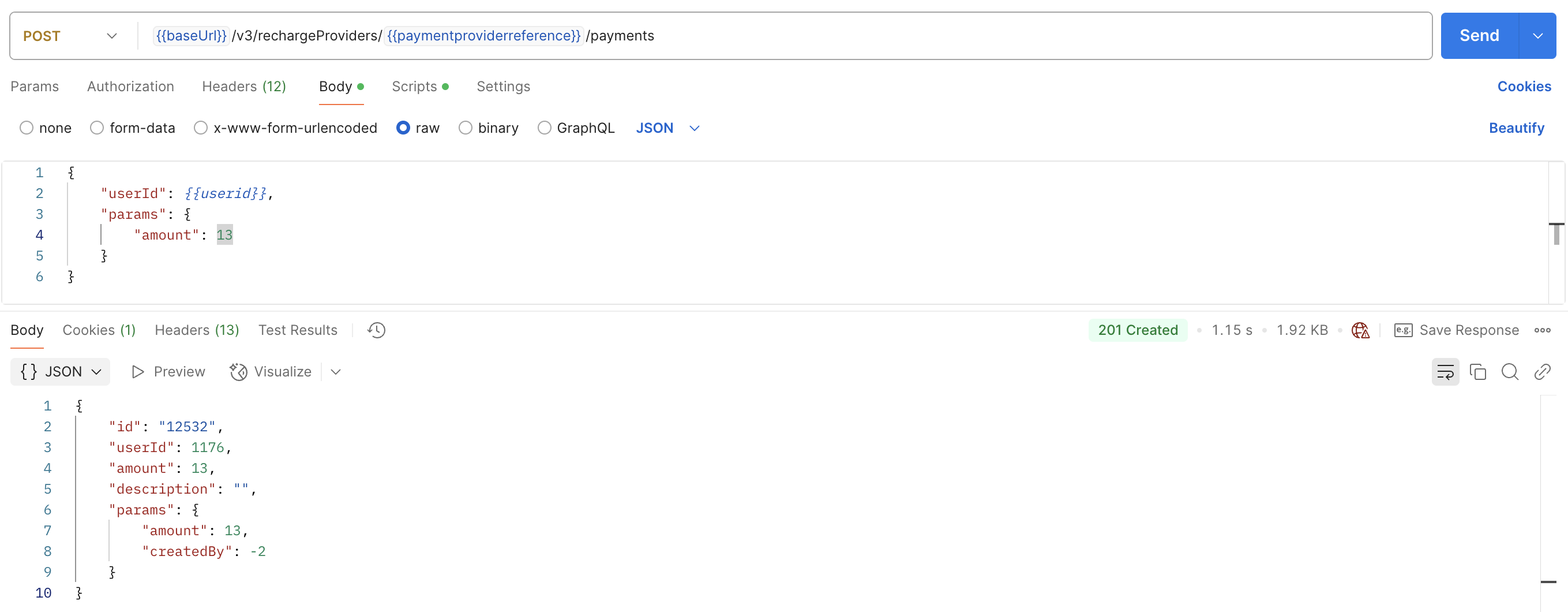

POST request to create a payment:

POST {{baseUrl}}/v3/rechargeProviders/{{paymentproviderreference}}/payments

  • Required scope: credit

  • {{paymentproviderreference}} use external.

  • To successfully call this endpoint, make sure the Content-Type is application/json.

In the body of the request, provide the additional information about the user ID and the amount of money to recharge:

CODE
{
	"userId": {{userid}},
	"params": {
		"amount": 13
	}
}

Example request:

CODE
POST {{baseUrl}}/v3/rechargeProviders/external/payments

{
	"userId": 1176,
	"params": {
		"amount": 13
	}
}

The answer then returns the ID of the payment (12532), which we will use to commit the payment.

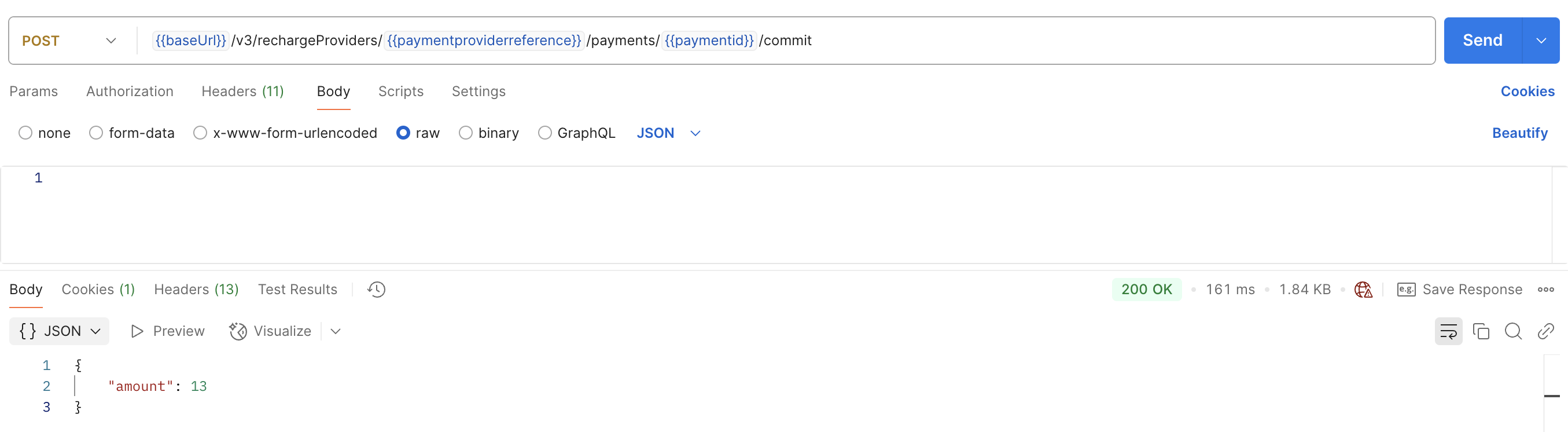

Commit the payment:

POST {{baseUrl}}/v3/rechargeProviders/{{paymentproviderreference}}/payments/{{paymentid}}/commit

  • Required scope: credit

And finally, an answer is returned with the recharged amount, confirming the operation was successful.


Example request:

CODE
POST {{baseUrl}}/v3/rechargeProviders/external/payments/12532/commit

And the user’s credit is topped up.

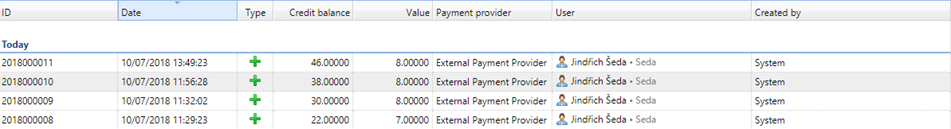

You will see the payment in the Credit Statement.
