Setting up Universal Print in Microsoft Azure

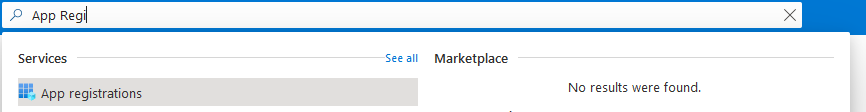

Log in to the Microsoft Azure portal and go to App registrations.

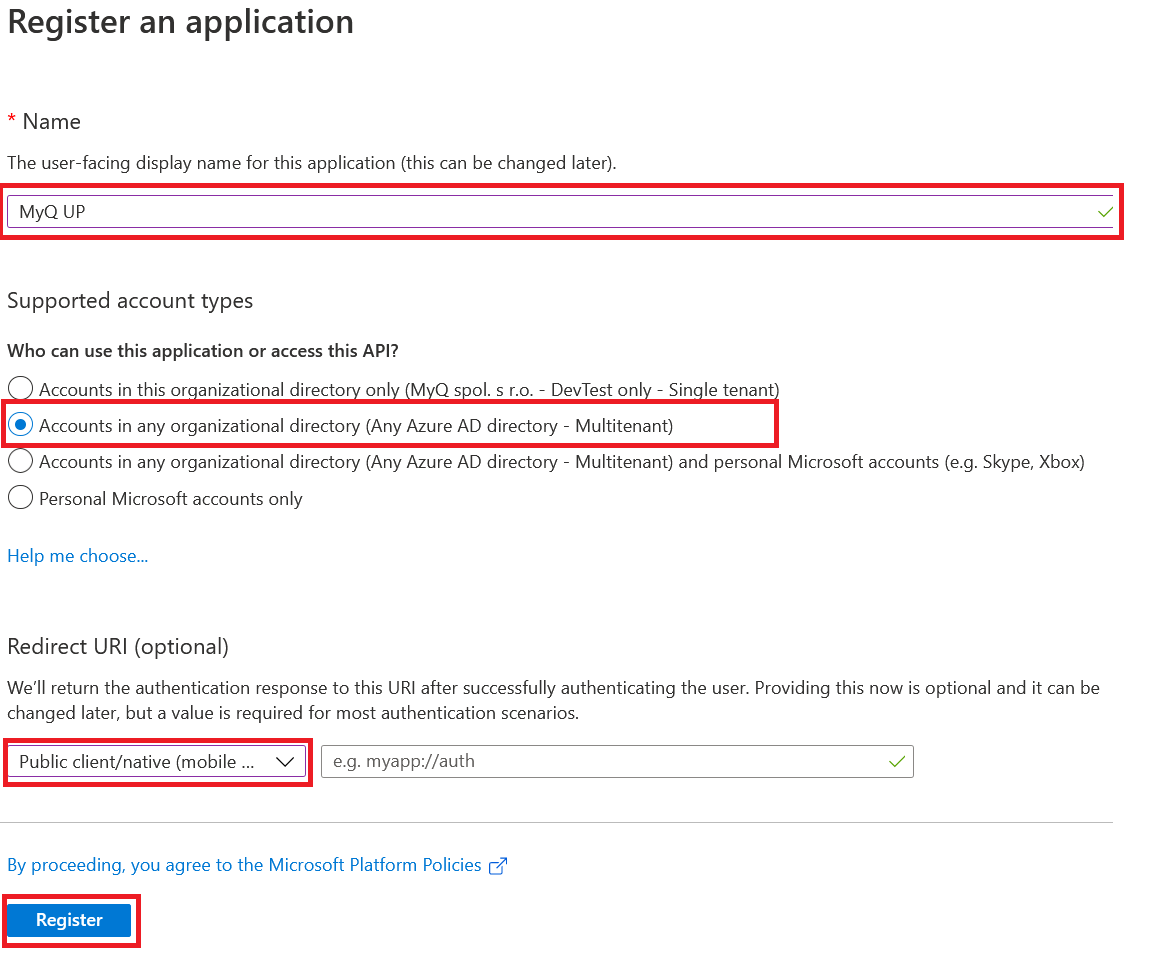

Click New Registration and fill in the new app details:
Name - The name for this application (this can be changed later). For example, MyQ UP.
Supported account types - Who can use this application or access this API? Select the Accounts in any organizational directory (Any Azure AD directory - Multitenant) option.
Redirect URI (optional) - The authentication response is returned to this URI after successfully authenticating the user. Select the Public client/native (mobile&desktop) option from the drop-down.
Click Register.

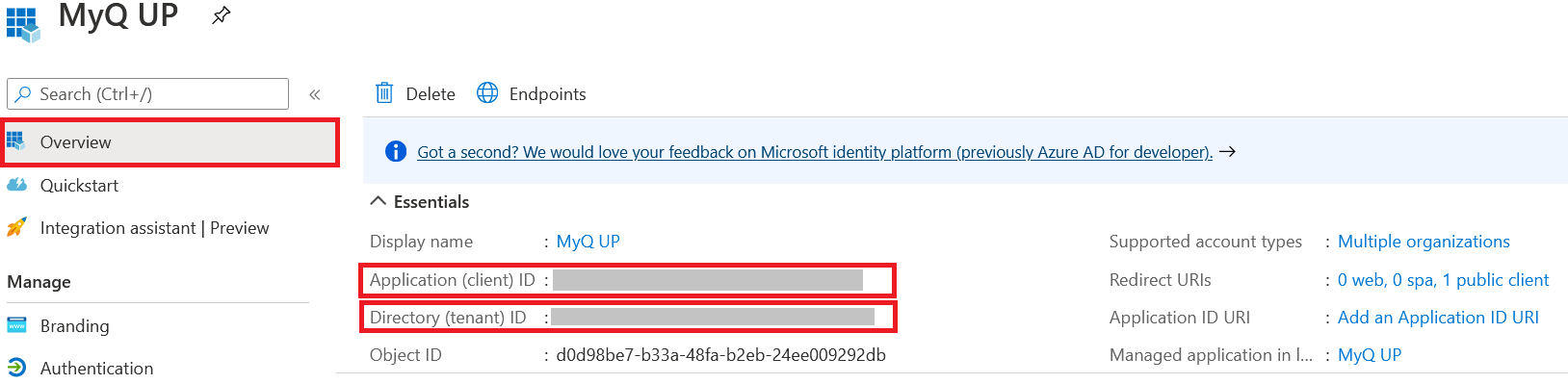

The new app overview page opens. Copy the Application (client) ID and the Directory (tenant) ID, as they are needed for the connection to MyQ.

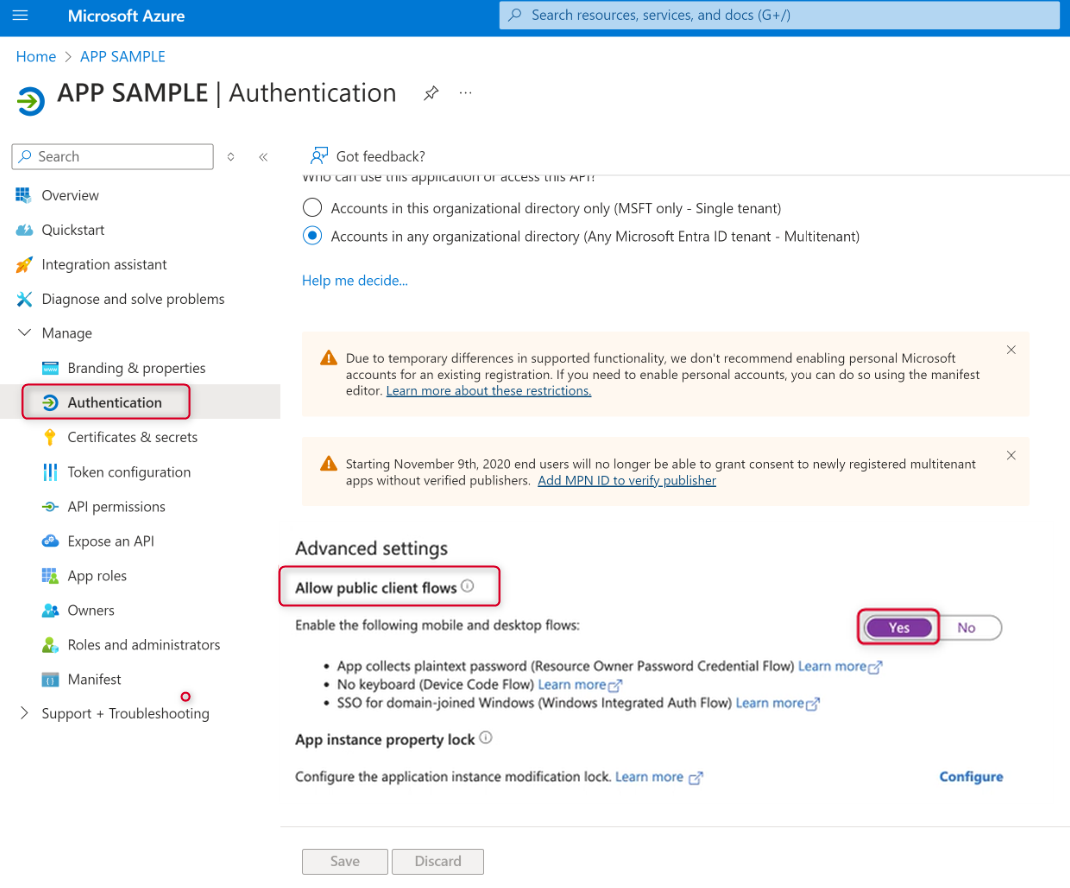

Under Authentication > Advanced Settings, enable the Allow public client flows option. This setting allows the application to authenticate directly from the client (e.g., a mobile app or a single-page application) without requiring a backend service.

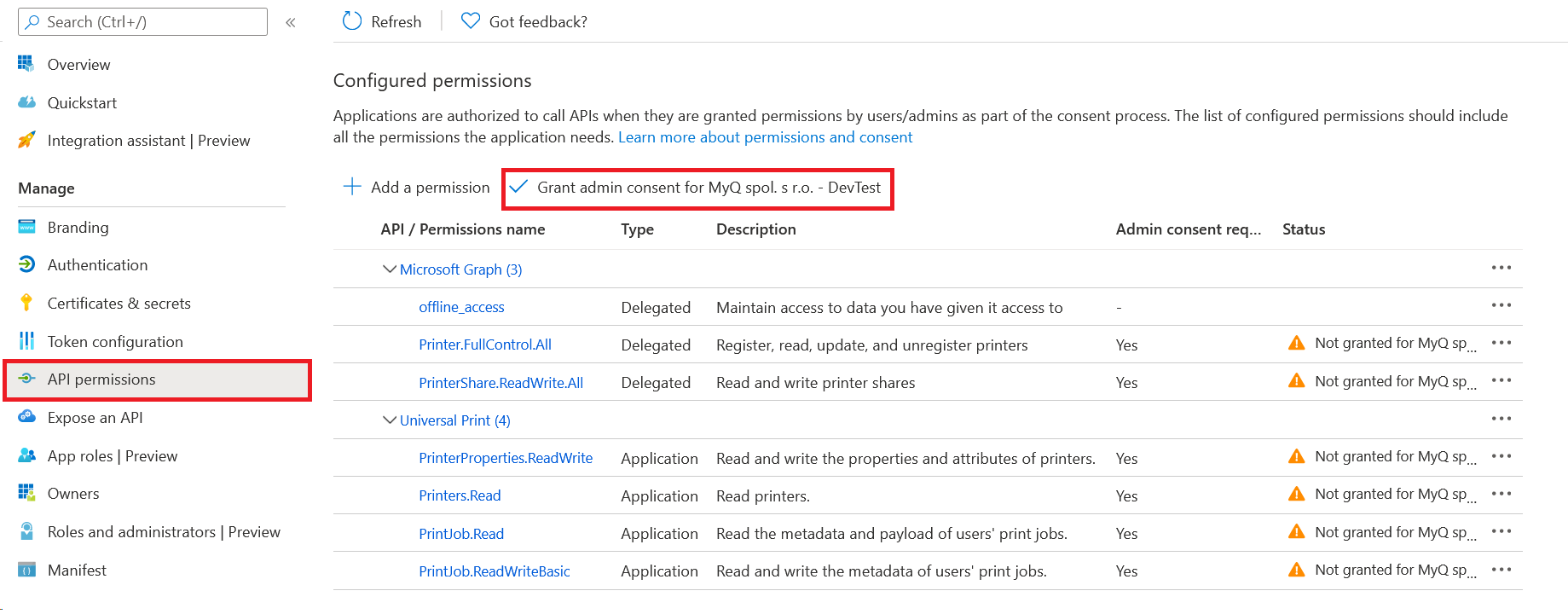

On the left-hand menu, click API permissions and click Grant admin consent for the scopes seen in the image below:

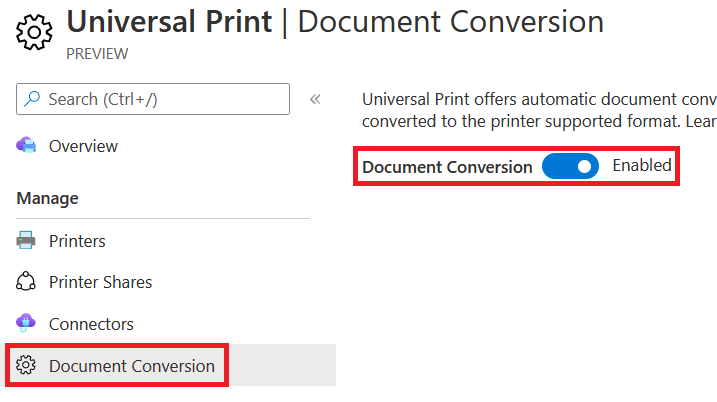

Go to Universal Print and enable Document Conversion.
The table below shows the details of the required scopes:
Scope ID | Description |
|---|---|
06ceea37-85e2-40d7-bec3-91337a46038f | Microsoft Graph: PrintShare.ReadWrite.All Read and write printer shares |
7427e0e9-2fba-42fe-b0c0-848c9e6a8182 | Microsoft Graph: offline_access Allows MyQ to request the Access token via the complete MS OAuth2 flow only once, and then use Refresh token to exchange it for the Access token. |
93dae4bd-43a1-4a23-9a1a-92957e1d9121 | Microsoft Graph: Printer.FullControl.All Register, read, update, and unregister printers |
3e306194-d6c5-43ad-afbb-0e7b16a9c10b | UP: Printers.Create Create (Register) printers |
1c90a3a7-465b-49c4-adcc-c8ac83d3d3f8 | UP: PrinterProperties.ReadWrite Read and write the properties and attributes of printers. |
2b1bdd6b-9a0f-47c6-a806-b3e20cfd07a8 | UP: Printers.Read Read printers |
b695614a-52ec-4835-9e13-bdf5ff4c7448 | UP: PrintJob.Read Read the metadata and payload of users' print jobs. |
11f87dac-027f-4d76-bd29-1ea1536b93da | UP: PrintJob.ReadWriteBasic Read and write the metadata of users' print jobs. |
