What is High Availability?
In simple terms, High Availability (HA) is the ability of a service to continue operating despite failures within its environment. You can achieve HA by designing a system with no single point of failure. In a high availability system, workloads are distributed across a cluster of server nodes. If one server node fails, the workloads running on it automatically move to other servers. It helps ensure that critical applications keep running even when problems occur in other parts of the system.
The main goal of High Availability is to minimize the impact that downtime/outages have on an organization’s business processes.
A common misconception of High Availability is that an IT system will be available 24/7. Even at the highest level of HA, an organization should still prepare for a small percentage of planned or unplanned downtime, which an SLA usually defines with “Five Nines” being the highest level of Availability.
How much High Availability do you need?
If you were to ask people how much their IT systems should be protected against downtime, the obvious reply would be 24/7, always available; however, this is incredibly challenging and costly to achieve.
Before any organization can consider a strategy for High Availability, a proper business impact analysis is needed to identify critical business processes and the risk related to planned and unplanned downtime of the interconnected IT systems.
Although some organizations may require the highest availability level, many do not. Additionally, not all IT services are business critical; therefore, it may be more acceptable and economical for some organizations to have a High Availability SLA of 99% vs. 99.999%.
📓 A simple example could be a supermarket that requires its online payment system to be available at the highest level of Availability. The impact of not having this service available can result in loss to the business because customers will not be able to make any purchases if they do not have cash on them. The same supermarket will, however, be less impacted if the print system in the back office were to go offline for a few minutes due to planned or unplanned downtime.
Determine High Availability requirements with a BIA (Business Impact Analysis)
Before deciding on a High Availability strategy, an organization should carry out a BIA (Business Impact analysis) to determine the severity of impact that IT-related outages/downtime have on critical business processes and to identify requirements needed to ensure the continuity of operations.
A Business impact analysis may differ from organization to organization but usually covers the following:
Identifies critical business processes
Calculates a measurable risk of loss due to IT outages/downtime
Considers essential business functions, people, and business dependencies
It is based on data gathered via BIA interviews with employees
Ultimately, the BIA will allow the organization to see how a business would be affected if you took business processes away during IT systems outages/downtime. It helps the organization determine which business processes are the most critical for continued operation and assists in creating a recovery plan.
Key Recovery Objectives

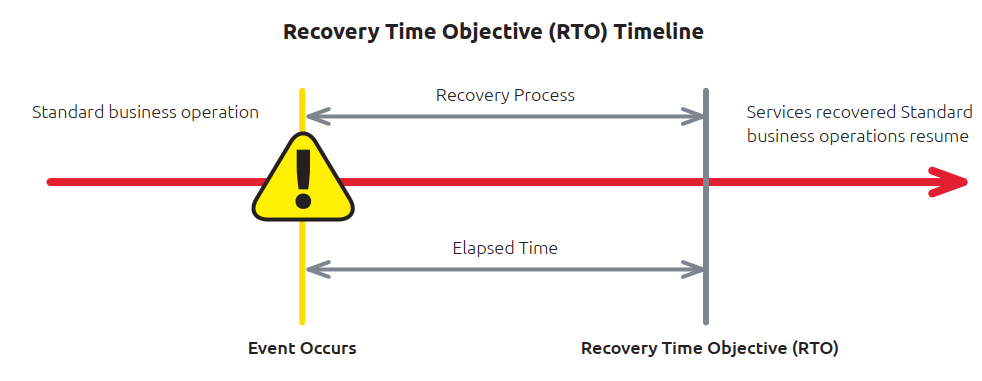

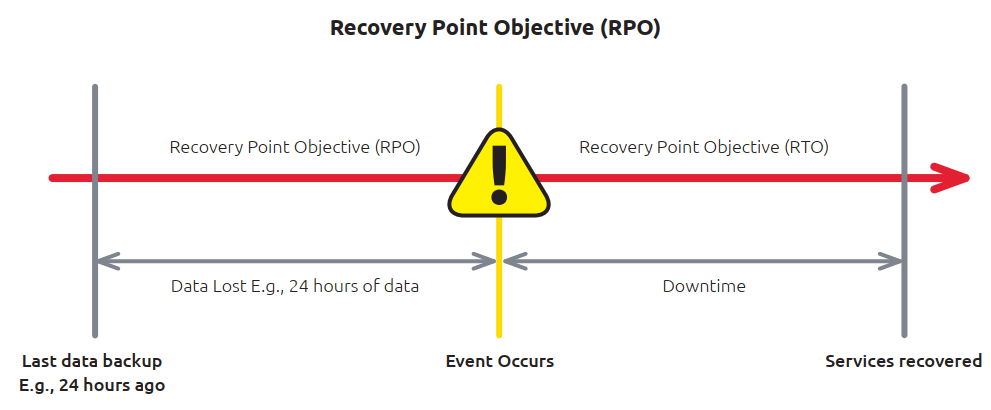

When considering High Availability, there are two key parameters that define how long your organization can afford to be offline and how much data loss it can tolerate. These parameters are the Recovery Time Objective (RTO) and Recovery Point Objective (RPO).
How to measure High Availability
High Availability is measured in the percentage of time that a service is available to users, often referenced by the number of nine’s in the digits. “Five Nines” is used to describe an IT system’s continuity with 99.999 uptime. In other words, the IT system or service is only unavailable for 5.39 minutes throughout the year for planned or unplanned downtime.
Achieving five-nines of High Availability over some time is incredibly challenging. It is expensive due to the running costs of the physical hardware infrastructure and software components, and additional components add to complexity and risk. For many services or networks, three or four nines would be more effective and justified regarding the resources and cost involved.
