Easy Scan

Scanning by a single touch. After you tap this action, the page is immediately scanned to a predefined destination. Your administrator can define multiple destinations where the scanned document is sent to by setting up multiple Easy Scan actions (e.g. Easy Scan to Email, Easy Scan to Folder, Easy Scan to OneDrive, etc.). The administrator can also set the scan’s parameters, and may allow you to change them before scanning.

Some parameters (e.g. resolution, color) significantly influence the scanned file's size. For example, a combination of higher resolution and full color will dramatically increase the file size.

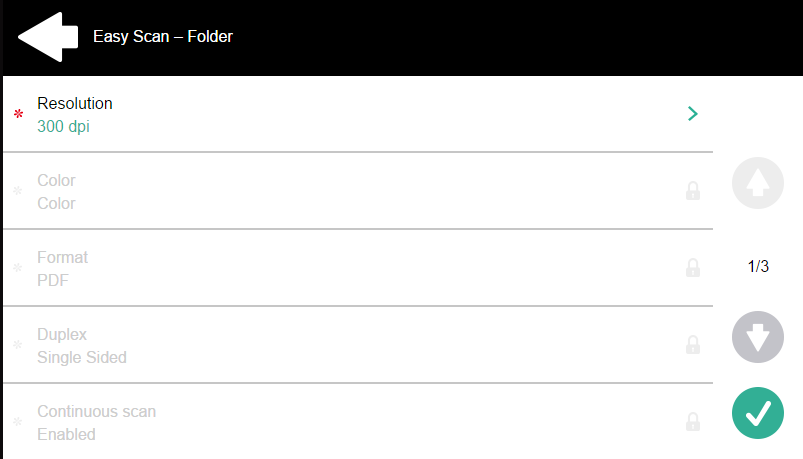

Changing Easy Scan parameters on the terminal
Easy Scan parameters

Each parameter has a Default option. If selected, the actual values are taken from the default scan settings of the printing device.

  • Resolution - The outgoing file's resolution. You can select from the following options:

    • 100 dpi

    • 200 dpi

    • 300 dpi

    • 400 dpi

    • 600 dpi

    • 1200 dpi

    • Default

  • Color - The outgoing file's color scale. You can select from the following options:

    • Color

    • Grayscale

    • B&W (two tones)

    • Automatic

    • Default

  • Format - The outgoing file's format. You can select from the following options:

    • PDF

    • JPEG

    • TIFF

    • XPS

    • HCPDF

    • Default

  • Duplex - Simplex and Duplex scanning options. You can select from the following:

    • Single Sided

    • Duplex - binding on top

    • Duplex - binding on side

    • Booklet - binding on left

    • Booklet - binding on right

    • Default

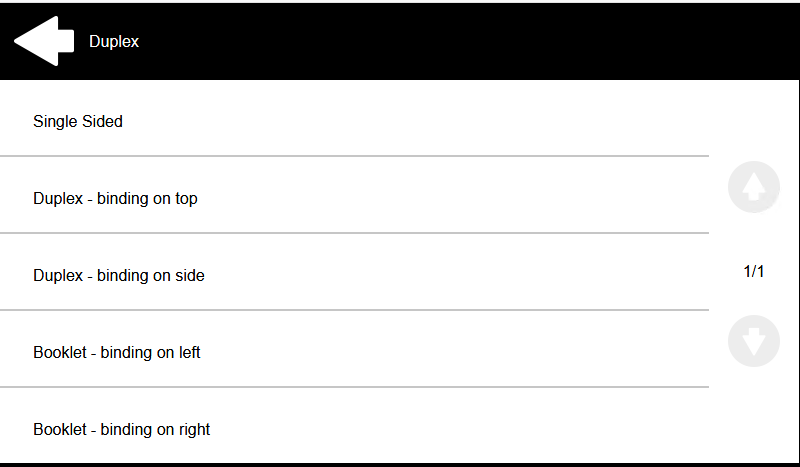

      Easy Scan duplex options on the terminal
  • Continuous scan - With the continuous scan option Enabled, scan jobs are not sent until Done is tapped. After clicking Scan, the printing device scans another page.

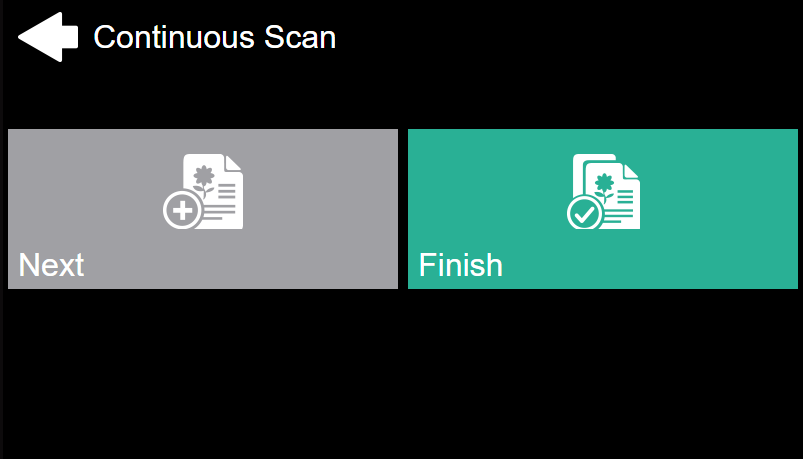

    Continuous Scan on the terminal

    You can select from the following:

    • Disabled

    • Enabled

    • Default

  • Scan separation - If a document with multiple pages is scanned, scanned pages can be stored either separately (each page in a separate file) or all together in one file. You can select from the following options:

    • All pages together

    • Separate each page

    • Default

  • Original Image - Determines the way in which the printing device is going to process the scanned page. You can select from the following options:

    • Text + Photo

    • Photo

    • Text

    • Default

  • Original Orientation - Determines the scanned page's orientation in the outgoing file. The paper's position is relative to the person standing at the printing device. You can select from the following options:

    • Top Edge on Top: The page is displayed in a horizontal position (top edge of the page opposite to the person)

    • Top Edge on Left: The page is displayed in a vertical position (top edge of the page on the left hand side of the person)

    • Default

  • Density - The picture's density in the outgoing file. The higher it is, the darker the resulting picture is. You can select from the following options:

    • Automatic

    • Lowest

    • Lower

    • Low

    • Normal

    • High

    • Higher

    • Highest

    • Default

  • Size - The scanned output's size. This determines the size of the scanning area, therefore it should correspond to the actual size of the scanned paper. You can select from the following options:

    • Automatic

    • A3

    • A4

    • A5

    • A6

    • Folio

    • Ledger

    • Letter

    • Legal

    • Oficio II

    • Statement

    • Default

  • Skip blank pages - With this parameter, you can select to skip blank pages in the scanned document. You can select from the following options:

    • Default

    • Yes

    • No
