Exploded Mode

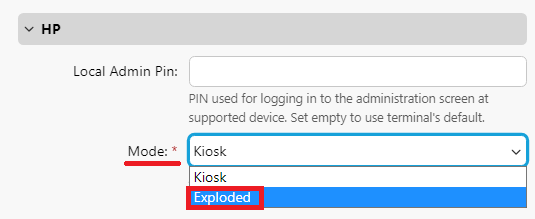

You can select the Exploded mode for your terminal in the terminal’s configuration profile, in MyQ, Settings, Configuration Profile, in the Terminal tab.

For applying this setting, force remote configuration is required.

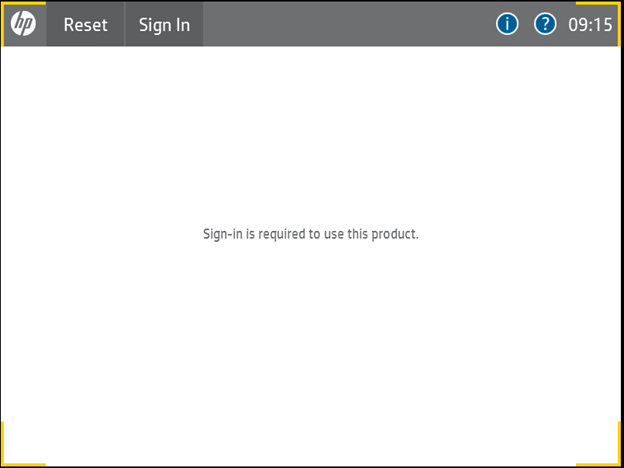

If the Exploded mode is enabled, the HP native screen is displayed on the embedded terminal.

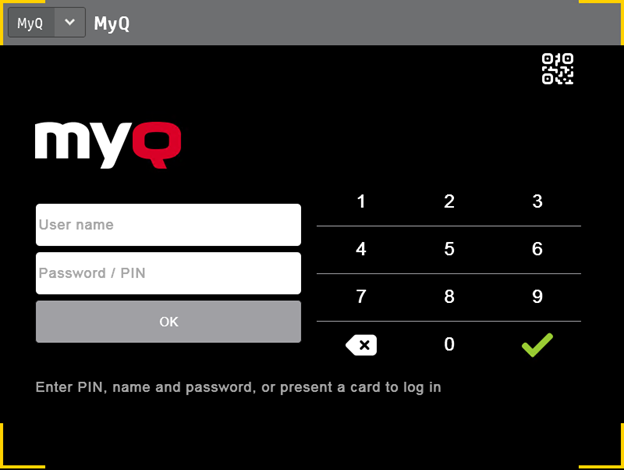

Users can sign in using their MyQ account credentials. Then the MyQ screen is displayed, where they can log in using their MyQ account again.

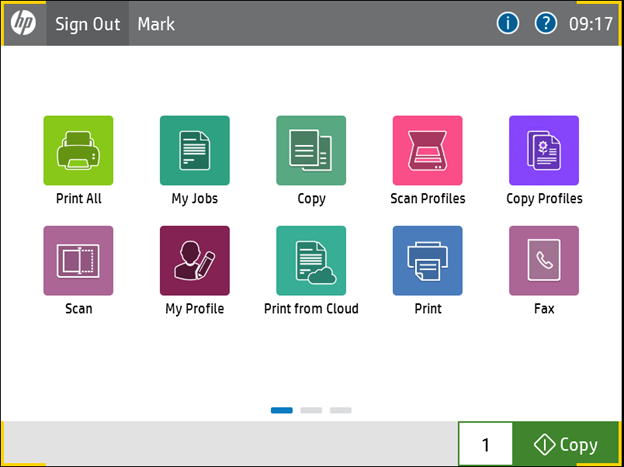

Once logged in, they can see and use the available terminal actions.

Exploded mode is also supported in devices with a 4.3” display:

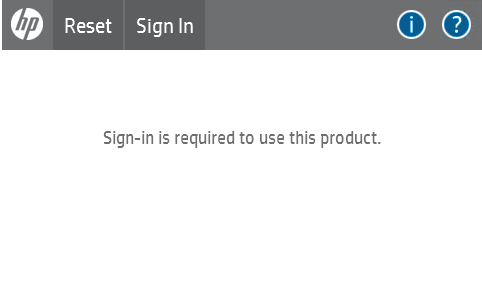

Sign in on a 4.3” display in exploded mode

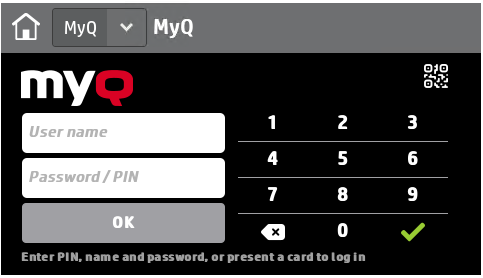

MyQ log in on a 4.3” display in exploded mode

MyQ log in in exploded mode on a small screen

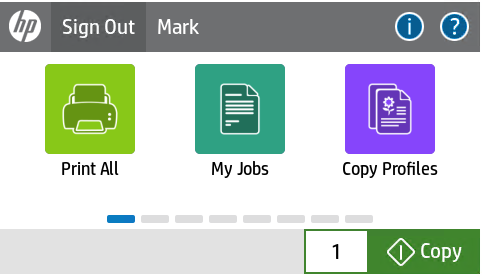

Terminal Actions on a 4.3” display in exploded mode

Terminal actions in exploded mode on a small screen

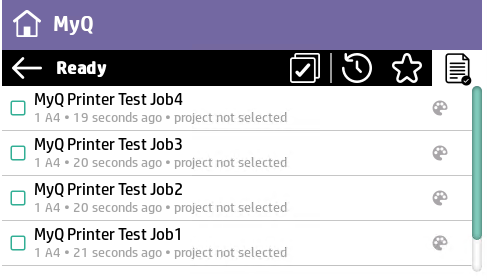

My Jobs on a 4.3” display in exploded mode

My Jobs on exploded mode in a 4.3 display

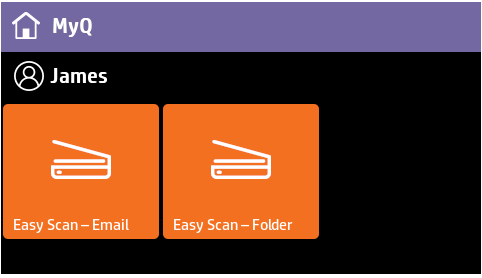

Easy Scan Profiles on a 4.3” display in exploded mode

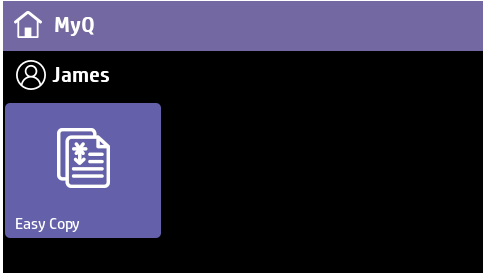

Easy Copy profiles on a 4.3” display in exploded mode

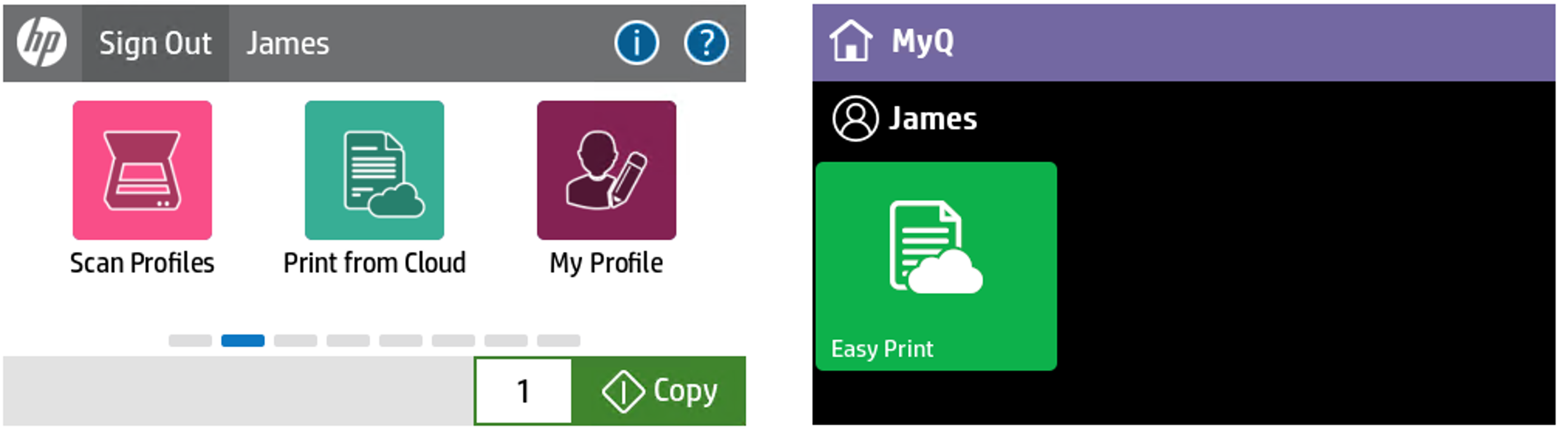

Easy Print (Print from Cloud) on a 4.3” display in exploded mode

Easy Print action in exploded mode on a small screen
